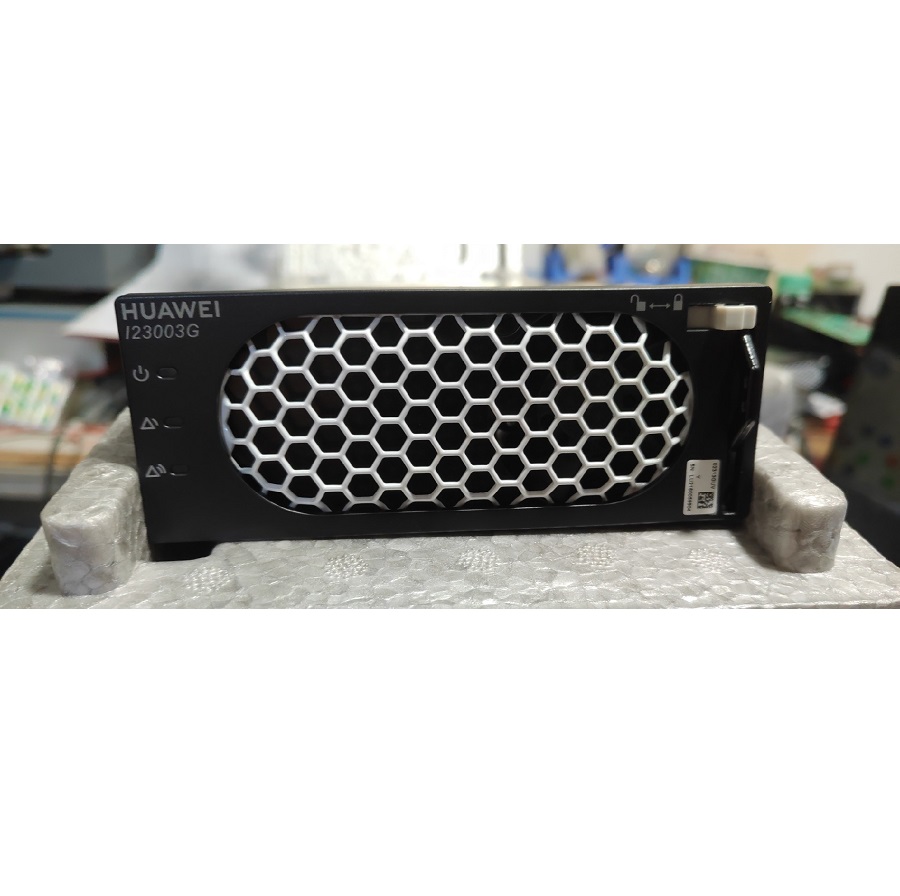

Huawei Inverter Module I23003G1 02313GUV 1U 3000VA 2400W High Efficie I23002G ETP23006-C1A1/C3A1/C6A1 l22003G1 Embedded Power Rectifier - M
NGN356,200.00
Availability:
In stock
Out of stock
Huawei Inverter Module I23003G1 02313GUV 1U 3000VA 2400W High Efficie I23002G ETP23006-C1A1/C3A1/C6A1 l22003G1 Embedded Power Rectifier
Product Description
Huawei Inverter Module I23003G1 02313GUV 1U 3000VA 2400W High Efficie I23002G ETP23006-C1A1/C3A1/C6A1 l22003G1 Embedded Power Rectifier
Technical Specifications
SUN2000-2KTL-L1
SUN2000-3KTL-L1
SUN2000-3.68KTL-L1
SUN2000-4KTL-L1
SUN2000-4.6KTL-L1
SUN2000-5KTL-L1
SUN2000-6KTL-L1
Maximum input voltagea
- No battery connected: 600 V
- LG-RESU battery connected: 495 V
Maximum input current (per MPPT)
12.5 A
Maximum short-circuit current (per MPPT)
- No battery connected: 18 A
- LG-RESU battery connected: 15 A
Operating voltage range
- No battery connected: 80–600 V
- LG-RESU battery connected: 350–450 V
Startup voltage
100 V
MPPT voltage range
90–560 V
Rated input voltage
360 V
Power supply
2
Number of MPPTs
2
Battery normal voltage
450 Vdc
Battery voltage range
350-600 Vdc
Battery maximum current
15 A
Battery type
Li-ion
Note a: The maximum input voltage includes the PV input voltage and battery input voltage.
Output (On grid)
Technical Specifications
SUN2000-2KTL-L1
SUN2000-3KTL-L1
SUN2000-3.68KTL-L1
SUN2000-4KTL-L1
SUN2000-4.6KTL-L1
SUN2000-5KTL-L1
SUN2000-6KTL-L1
Rated output power
2000 W
3000 W
3680 W
4000 W
4600 W
5000 Wa
6000 W
Maximum apparent power
2200 VA
3300 VA
3680 VA
4400 VA
5000 VAb
5500 VAc
6000 VA
Rated output voltage
220 V
/230 V
/240 V
220 V
/230 V
/240 V
230 V
/240 V
220 V
/230 V
/240 V
220 V
/230 V
/240 V
220 V
/230 V
/240 V
220 V
/230 V
/240 V
Rated power grid frequency
50 Hz/60 Hz
Maximum output current
10 A
15 A
16 A
20 A
23 A
25 A
27.3 A
Rated output current
9.1 A
/8.7 A
/8.3 A
13.6 A
/13.0 A
/12.5 A
16.0 A
/15.3 A
18.2 A
/17.4 A
/16.7 A
20.9 A
/20.0 A
/19.2 A
22.7 A
/21.7 A
/20.8 A
27.3 A
/26.1 A
/25.0 A
Rated apparent power
2 kVA
3 kVA
3.68 kVA
4 kVA
4.6 kVA
5 kVA
6 kVA
Inrush current
10 A
15 A
16 A
20 A
23 A
25 A
27.3 A
Max output fault current
30.12 A
45.18 A
55.42 A
60.24 A
69.28 A
75.3 A
90.37 A
Max output overcurrent protection
12 A
18 A
19.2 A
24 A
27.6 A
30 A
32.76 A
Power factor
0.8 leading and 0.8 lagging
Maximum total harmonic distortion (rated power
